Forklift Battery Chargers
>
|
|
| Place of Origin | China |
| Brand Name | KOMCO |
| Model Number | KO-XZ |

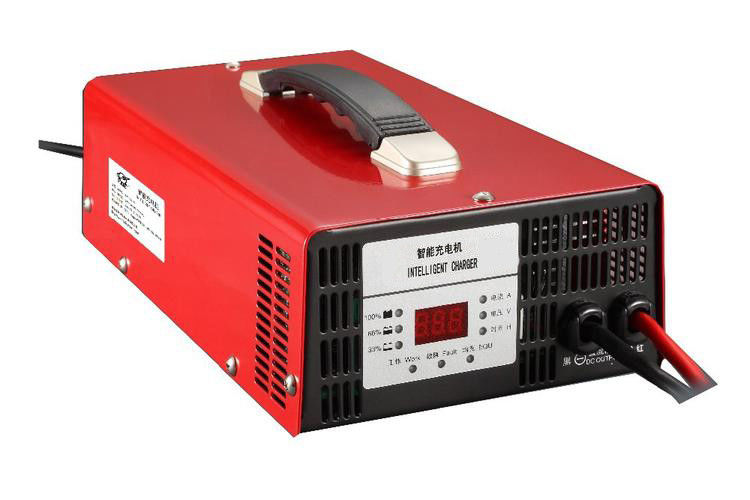

15A 30A 80A 100A Xuan Current Charging Battery Electric Locomotive Charger With LCD Display Automatic battery charger
| Property | Description |
|---|---|
| Warranty | 1 Year |
| Amperage | 15A, 20A, 25A, 30A |
| Input Voltage | 110V, 220V |
| Charging Mode | Trickle Charge, Xuan Current Charging (Multi], Constant Voltage Charging, Charging IUla/WUla |
| Weight | 4.2KG |
| Voltage | 12V/ 24V/ 36V/ 48V/ 60V |
| Protection | Overvoltage, Overcurrent, Short Circuit, Reverse Polarity |
| Size | 29x16.5x8cm |
| Cooling Method | Air Cooled, Water Cooled |
| Type | Forklift Battery Chargers |
| Technical parameters Charger | |
| Model | KO-XZJCF |
| Enter | |
| AC input | 220Vac±15% |
| AC input frequency | 47Hz‐63Hz |
| AC input current (Max.) | 16A@187Vac |
| Export | |
| Maximum output voltage. | open type:81Vdc Closed type:88.9Vdc |
| Maximum output current | 12V 30A,24V 15A,24V 20A,24V 30A,48V 15A,48V 20A,48V 25A,60V 15A |
| Maximum output power | 1728W(86.4V‐20A) |
| Maximum audible noise | 60db |
| Check steady precision | ±1% |
| Steady flow accuracy | ±1% |
| More than a ripple factor | 1% |
| Effectiveness | ≥93% |
| Features | |
| Intelligent charging | Trickle Charge, Xuan current charging (Multi], constant voltage charging, Charging IUIa/WUIa |
| Equalizing charge | Charger online timer 10 hours after fully charging function after starting balance (2 hours) |
| LED Lights | Work instructions, Stimulated fault indication, BC indicates, the battery capacity indication scene |
| Automatic temperature compensation | ±5mV/C , Monomer (25C base point) |
| protection | |
|
Input over voltage protection voltage value |
>253Vac |
|
Input under voltage protection voltage value |
<187Vac |
|
Output over voltage protection Yoo |
98±1Vdc |
| Output over‐current flows Yoo | 110%* Also large charging current setting value |
|
Battery abnormal |
When the battery voltage Gerbera access battery system power 90Vdc or less than 60Vdc |
| Abnormal pressure, charger newspaper superfluous, digital display, "BAT" battery pack when the access system power | |
| Nymphides newspaper automatic discharge, charger bismuth restore normal working condition | |
|
Output short circuit protection |
When Chu output short circuit, the charging machine and reported to authorities broom "BAT": short releasing day after break up the correct battery |
| Newspaper released, the output automatically return to normal state | |
|
Output dis-connection protection |
When gas output after disconnection, filling machines village authorities and report pouts "BAT" to lift and break into the correct battery |
| Newspaper released, output is automatically restored to normal status Ji | |
| Prevention and access protection | When the charger output correct and negative polarity, the charging unit and report to authorities backbone "BAT" difficult to pronounce report released, to return to normal |
KOMCO's KO-XZ Forklift Battery Charger is a reliable and efficient mine charger and lift truck charger from China. It has a wide input frequency range of 50/60Hz and is equipped with advanced protection features such as overvoltage, overcurrent, short circuit, and reverse polarity. This charger provides efficient and safe charging of forklift batteries with multiple charging modes, including Trickle Charge, Xuan Current Charging (Multi], Constant Voltage Charging, and Charging IUIa/WUIa. It is designed for a quick and convenient charging time of 2-8 hours. KOMCO's KO-XZ Forklift Battery Charger is the perfect solution for those in need of a dependable and durable mine charger or lift truck charger.
KOMCO Electric Locomotive Charger, Truck Battery Charger, Lift Truck Charger
Brand Name: KOMCO
Model Number: KO-XZ
Place of Origin: China
Equalizing charge: Charger Online Timer 10 Hours After Fully Charging Function After Starting Balance (2 Hours)
Protection: Overvoltage, Overcurrent, Short Circuit, Reverse Polarity
Charging Mode: Trickle Charge, Xuan Current Charging (Multi], Constant Voltage Charging, Charging IUIa/WUIa
Size: 29x16.5x8cm
Warranty: 1 Year
At Forklift Battery Chargers, customer service and technical support are our top priority. Our knowledgeable staff is available to answer any questions you may have about our products, services, and installation. We offer comprehensive technical support, including troubleshooting, repairs, and maintenance. Our team of experts can help you with everything from battery selection to installation to ongoing maintenance. We also provide free online resources, such as instructional videos, product manuals, and customer support forums. Our goal is to provide you with the best experience possible, so please reach out to us with any questions or concerns.
Forklift Battery Chargers are packaged in sturdy boxes with protective styrofoam inserts and securely sealed with tape. To ensure safe delivery, packages must be handled with care.
Shipping costs vary depending on the size and weight of the package. All shipping is done via ground service and typically takes 1-7 business days, depending on the destination.
Contact Us at Any Time
