| Place of Origin | China |
| Brand Name | KOMCO |
| Model Number | KO-XZ |

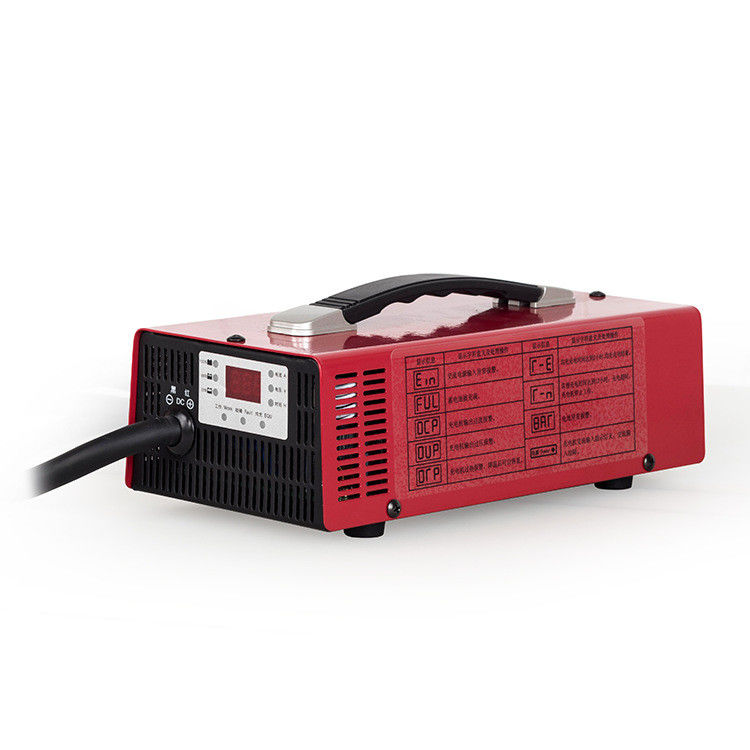

15A Electric Locomotive Trickle Charge Charger 24V15A forklift charger battery-powered stacker intelligent charger
This charger incorporates the world's first multi-resonant converter (LLC) with a nonlinear controller. It has successfully developed a complete range of electric forklifts, electric golf carts, electric patrol cars, electric sightseeing vehicles, electric boats, electric cars, hybrid electric vehicle chargers, and charging devices. It has been widely utilized for charging and power conversion of various types of electric vehicles powered by energy storage batteries (including lead-acid batteries, lithium-ion batteries, etc.). This solution effectively addresses key issues such as poor reliability and short lifespan of high-power switch-mode power supplies, while significantly enhancing the conversion efficiency of high-power converters (up to 97% at maximum).
| Specifications | 15A Electric Locomotive Trickle Charge Charger 24V15A forklift charger battery-powered stacker intelligent charger |
|---|---|
| Input Frequency | 50/60Hz |
| Equalizing Charge | Charger Online Timer 10 Hours After Fully Charging Function After Starting Balance (2 Hours) |
| Cooling Method | Air Cooled, Water Cooled |
| Charging Mode | Trickle Charge, Xuan Current Charging (Multi], Constant Voltage Charging, Charging IUIa/WUIa |
| Size | 29x16.5x8cm |
| Type | Forklift Battery Chargers |
| Charging Time | 2-8 Hours |
| Warranty | 1 Year |
| Input Voltage | 110V, 220V |
| Weight | 4.2KG |
| Technical parameters Charger | |
| Model | KO-XZJCF |
| Enter | |
| AC input | 220Vac±15% |
| AC input frequency | 47Hz‐63Hz |
| AC input current (Max.) | 16A@187Vac |
| Export | |
| Maximum output voltage. | open type:81Vdc Closed type:88.9Vdc |
| Maximum output current | 15A |
| Maximum output power | 1728W(86.4V‐20A) |
| Maximum audible noise | 60db |
| Check steady precision | ±1% |
| Steady flow accuracy | ±1% |
| More than a ripple factor | 1% |
| Effectiveness | ≥93% |
| Features | |
| Intelligent charging | Trickle Charge, Xuan current charging (Multi], constant voltage charging, Charging IUIa/WUIa |
| Equalizing charge | Charger online timer 10 hours after fully charging function after starting balance (2 hours) |
| LED Lights | Work instructions, Stimulated fault indication, BC indicates, the battery capacity indication scene |
| Automatic temperature compensation | ±5mV/C , Monomer (25C base point) |
| protection | |
|
Input over voltage protection voltage value |
>253Vac |
|
Input under voltage protection voltage value |
<187Vac |
|
Output over voltage protection Yoo |
98±1Vdc |
| Output over‐current flows Yoo | 110%* Also large charging current setting value |
|
Battery abnormal |
When the battery voltage Gerbera access battery system power 90Vdc or less than 60Vdc |
| Abnormal pressure, charger newspaper superfluous, digital display, "BAT" battery pack when the access system power | |
| Nymphides newspaper automatic discharge, charger bismuth restore normal working condition | |
|
Output short circuit protection |
When Chu output short circuit, the charging machine and reported to authorities broom "BAT": short releasing day after break up the correct battery |
| Newspaper released, the output automatically return to normal state | |
|
Output dis-connection protection |
When gas output after disconnection, filling machines village authorities and report pouts "BAT" to lift and break into the correct battery |
| Newspaper released, output is automatically restored to normal status Ji | |
| Prevention and access protection | When the charger output correct and negative polarity, the charging unit and report to authorities backbone "BAT" difficult to pronounce report released, to return to normal |
KOMCO's KO-XZ Forklift Battery Chargers are industrial grade chargers designed for use with lift trucks. This charger is made in China and weighs 4.2KG. It is designed to charge your lift truck batteries in 2-8 hours, providing overvoltage, overcurrent, short circuit, and reverse polarity protection. This charger features an input frequency of 50/60Hz and offers both air cooled and water cooled cooling methods.
KOMCO's KO-XZ Forklift Battery Chargers are built to last in harsh industrial environments and can handle even the toughest jobs. It is reliable, efficient, and designed to get the job done quickly and safely. This charger is perfect for any industrial setting that requires a high-quality, durable charger.
Whether you are looking for a lift truck charger, forklift charger, or an industrial charger, KOMCO's KO-XZ Forklift Battery Chargers are the perfect choice. With its superior design, protection features, and cooling methods, this charger is sure to provide you with the reliable performance that you need.
Brand Name: KOMCO
Model Number: KO-XZ
Place of Origin: China
Weight: 4.2KG
Type: Forklift Battery Chargers
Cooling Method: Air Cooled, Water Cooled
Amperage: 15A,20A,25A,30A
Voltage: 12V/ 24V/ 36V/ 48V/ 60V
KOMCO KO-XZ Forklift Battery Chargers are high-performance, reliable charging solutions for mining, truck, and industrial applications. They are designed for harsh environments and long service life. The chargers come in a variety of amperage and voltage options, ranging from 15A to 30A, and from 12V to 60V. With air cooled and water cooled cooling methods, they provide effective and efficient charging for your forklift batteries. The KOMCO KO-XZ Forklift Battery Chargers are lightweight and compact, making them easy to install and transport. With their robust construction, these chargers will meet the needs of your toughest charging requirements.
We provide technical support and service for our Forklift Battery Chargers. Our team of experts is available 24/7 to answer any questions or address any issues you may have. We provide support via phone, email, and live chat.
Our technical team is also available to provide instruction and advice on installing, maintaining, and troubleshooting our Forklift Battery Chargers. We also offer service contracts to ensure our customers receive the highest quality of service and support.
We understand the importance of providing reliable and quality service and support for our products. Our goal is to ensure that our customers are satisfied with their purchase and that their Forklift Battery Chargers are working properly.
Forklift battery chargers are packaged in sturdy cardboard boxes with a cushioning material that is designed to protect the product during transit. The boxes are then sealed with strong adhesive tape and clearly labelled with the product name and address of the recipient. All items are then shipped via a reliable courier service to ensure a safe and timely delivery.
